Latest COFDM MIMO Video Data Transmitter and Receiver Module Integrated TRX Systems

  • 1
  • 2

Brand Name : Hincn

Model Number : HCL5-M

Place of Origin : China

MOQ : 1set

Price : US$899.00~US$3,299.00

Payment Terms : ,T/T,Western Union,D/P,D/A,L/C,MoneyGram

Supply Ability : 799 pcs/month

Delivery Time : 7~14 working days

Packaging Details : carton package

Modulation : TDD OFDM

Frequency : 806~826MHz,1428~1468MHz,1420~1530MHz

Encryption : AES128

RF Power : 25±2 dBm+ external RF power amplifier

Network mode : Point to Point, Point to Multipoint, Relay, Mesh

OEM/ODM video transmission solution : Support

Contact Now

Latest COFDM MIMO Video Data Transmitter and Receiver Module Integrated TRX Systems
Key Features
  • TDD COFDM video transmitter and receiver module for video data Link
  • RF Power: 25±2dBm+ external RF power amplifier
  • Working Frequency: 806~826HMz, 1428~1468MHz, 2402~2482MHz
  • Transparent IP Ethernet (2* Ethernet ports) and serial data(3* TTL/RS232 uart) sync telecommunication
  • Audio input and output with codec
  • Transmission range 5km~150km (UAV-to-ground) with/ without external RF power amplifier, can achieve wireless video data transmission at different levels of distance.
  • Great transfer rate for uplink and downlink
Overview

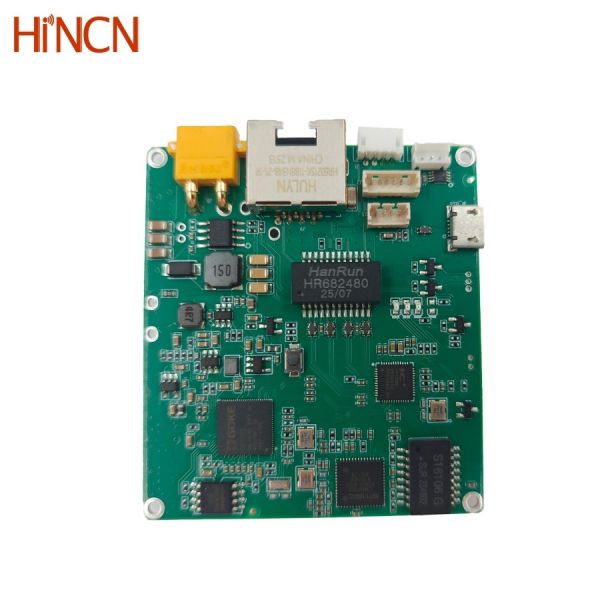

HCL5-M video data transmitter and receiver module was designed for wireless HD video transmission with dual wireless data links. This module works at 800MHz, 1.4GHz and 2.4GHz bands, the stability of signal transmission is ensured through the frequency hopping (FHSS) technology.

Specifications
Name Latest COFDM MIMO Video Data Transmitter and Receiver Module Integrated TRX Systems
Modulation TDD OFDM
Model number HCL5-M
Frequency 806~826MHz, 1428~1468MHz, 2402~2482MHz
FHSS Support
Bandwidths 1.4/3/5/10/20MHz
Throughput Maximum 30Mbps@20MHz
RF Transmission Power 25±2 dBm+10W external power amplifier
Constellation QPSK, 16QAM, 64QAM self adaption
Sensitivity -106dBm (2.4GHz 1Mbps), -108dBm (1.4GHz 1Mbps), -108dBm (800MHz 1Mbps)
Ethernet ports 2 * Ethernet ports for IP data transmission
Serial ports 3 * RS232/3 * TTL for serial data transmission
Transmission Range Up to 150km LOS (UAV-to-ground)
Management Web UI and Control Uart
Encryption AES128
Networking Mode Point to Point, Point to Multipoint, Relay, Mesh
Power Consumption <40W
Modem Dimensions 58*64*13mm
Modem Weight 32g
Working Temp. -20℃ ~ +65℃
Storage Temp. -40℃ ~ +80℃
Input/Output Signal
Power in XT30PW-M connector, DC in: 7~30V
Ethernet 1 4Pin ZH1.5mm connector
Ethernet 2 RJ45 connector
Data uart1 3PIN ZH1.5mm connector, TTL 3.3V
Data uart2 and uart3 6PIN PH1.25mm connector, uart3 works as control uart and data uart, TTL 3.3V
Audio input and output 4PIN PH1.25mm connector
USB Micro USB connector, for software upgrading
Switch TX/RX control signal for outside power amplifier
Main-Antenna TX/RX antenna port, IPEX
Second-Antenna RX antenna port, IPEX
12V out On board 12V out (<150mA), for cool fan power supply
Power Led Red, light on when normally powered
Node Led Blue, light on when the module works as central node
Link Led Light off - node not linked; Red - linked with weak signal; Orange - linked with medium signal; Green - linked with strong signal
Latest COFDM MIMO Video Data Transmitter and Receiver Module Integrated TRX Systems Latest COFDM MIMO Video Data Transmitter and Receiver Module Integrated TRX Systems
Wireless Networking with HCL5-M Module


The video data transmitter and receiver module supports two operating modes: Access Node or Central Node. It can be managed through Web UI or AT command via uart3. The module supports up to 16 Access Nodes connected to a Central Node, all sharing the maximum 30Mbps@20MHz throughput bandwidth. Uplink and downlink stream ratio can be controlled through web UI or AT command.


FAQ

Q: This video data transmitter and receiver module seems to support IP camera, what if I want to use a camera with HDMI or SDI video output?
A: For cameras with HDMI, SDI, AHD or AV output, you'll need our mini encoder device to encode the signal for transmission. At the receiver end, connect directly to your computer or NVR. For HDMI monitor output, our decoder device can convert the digital data back to HDMI video and audio signals.
