Wireless Broadband Ethernet Video Data Transceiver Module Support 32 MESH Network Nodes
Key Features
- TDD OFDM video transmitter receiver module for video data Link
- RF Power: 24±1dBm* 2 channels+ external RF power amplifier
- Working Frequency: 566MHz~678HMz, 1420MHz~1530MHz
- With 3 Ethernet and 1 RS232 uart wireless data link, TTL control uart
- Transmission range 500m~2000m (ground-to-ground), 20km~100km (UAV to ground)
- Support maximum 32 Mesh Network nodes
Overview
HCL6-M video data transceiver module is designed for video wreless transmission with bidirectional wireless data links. This module works at 600MHz and 1.4GHz bands, with frequency hopping technology (FHSS) to ensure the stability of signal transmission.
Specifications
| Name | Wireless Broadband Ethernet Video Data Transceiver Module Support 32 MESH Network Nodes |
| Modulation | TDD OFDM |
| Model number | HCL6-M |
| Frequency | 566~678MHz, 1420~1530MHz |
| FHSS | Support FHSS inside each band |
| Bandwidths | 1.4/3/5/10/20MHz |
| Throughput | Maximum 100Mbps |
| RF Transmission Power | 23± 1dBm* 2 channels + external RF power amplifier |
| Constellation | QPSK, 16QAM, 64QAM self adaption |
| Sensitivity | -102dBm (1Mbps@20MHz bandwidth) |
| Ethernet port | 3 * Ethernet ports for IP data transmission |
| Serial port | 1 * RS232 /TTL uart for serial data transmission |
| Transmission Range | Up to 20km~100km LOS (UAV to ground), and 2km LOS(ground to ground) |
| Management | Web UI and Control Uart |
| Encryption | AES128 |
| Networking Mode | Mesh |
| Power Consumption | <7W |
| Modem Dimensions | 80*57*9.1mm |
| Modem Weight | 41g |
| Working Temp. | -20℃ ~ +65℃ |
| Storage Temp. | -40℃ ~ +80℃ |
Ethernet Video Transmitter and Receiver Module Input/Output Signal
| Power in | 2PIN PH2.0mmConnector, DC in:9~30V |
| Ethernet 1 | 4PIN PH1.25mm Connector |
| Ethernet 2 | 4PIN PH1.25mm Connector |
| Ethernet 3 | 4PIN PH1.25mm Connector |
| Data uart | 3PIN PH1.25mm Connector, RS232(or TTL 3.3V) |
| Control uart | 3PIN PH1.25mm Connector, TTL 3.3V |
| Audio input and output | 4PIN PH1.25mm connector |
| USB | Micro USB connector, for software upgrading |
| Switch | TX/RX control signal for outside power amplifier |
| Main-Antenna | TX/RX antenna port, IPEX |
| Second-Antenna | TX/RX antenna port, IPEX |
| 12V out | On board 12V out (<200mA), for cool fan power supply |

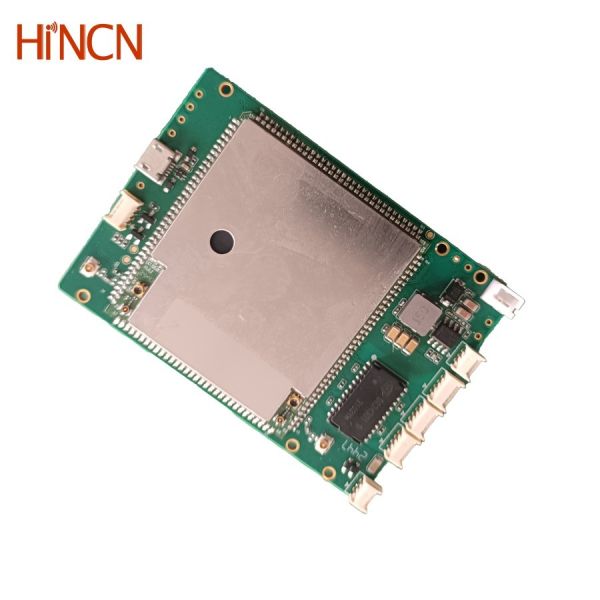

The front of video data transceiver module
The back of video data transceiver module
Wireless Networking with HCL6-M Module
The HCL6-M video data transceiver module supports two operation modes: access node mode or central node mode. It can be managed through the network user interface or by sending AT commands via the control Uart. It supports the function of up to 63 access nodes connecting to one central node.
All nodes are in the same wireless local area network and share the entire transmission bandwidth (maximum 100Mbps transmission rate). The data from the central node to the access node is called downlink data, and the data from the access node to the central node is called uplink. The ratio of uplink and downlink data streams can be controlled through the network user interface or AT commands.
When using it for point-to-point transmission, the uplink and downlink data streams also share the entire transmission bandwidth (maximum 100Mbps transmission rate).
Mesh networking
- Mesh networking capacity: Up to 32 nodes (N2 ≤ N ≤ 32).
- Transmission: Supports unicast, multicast and broadcast functions. Any node can communicate with each other in these three modes.
- Time synchronization: can be self-synchronized independently without the need for an external clock.
- Power control: all nodes will adaptively adjust the transmission power, support fixed power configuration, and this configuration will be permanently effective.
- Topology structure: Supports multi-hop routing topology with up to 32 nodes and 31 hops.
- R routing: automatically adjusts the route, and can also permanently configure a fixed route.
- Data rate level: uses adaptive average allocation of system rate.
- Transmission delay (Note: N is the number of nodes within two hops, hop count: H) Common scenario calculation formula, one-way delay index formula (MS): 6*H + (5/2) * N/2 * H * 3, two -way delay multiplied by 2; Two-node optimized delay: one-way delay between two nodes <= 10 ms; Four-node link optimized delay: three-hop one-way delay between four nodes <= 10 ms; Typical system delay (based on big data statistics): Six-point chain network, three hops, one-way delay: 50 ms; 8 points, all points are one-hop, one-way delay: 36 ms; 8 points, serial 7 hops: one-way 170 ms.
- Startup time delay: Network establishment delay of the logical main control node after startup 20 - 80 seconds. (Usually, the logical main control node is the first to be started); Cold start: Network access delay of the logical access node is less than 30 seconds and receives the signal from the logical main control node; Hot start: Delay of the secondary node to connect to the network is less than 1 second (common single-hop node network scenario)
